CAMARA: Dedicated Networks API

Description

The “Dedicated Networks” APIs provide functionalities for reserving network connectivity resources, selecting network capabilities, and controlling access for devices.

Information: https://camaraproject.org/dedicated-networks/ and https://github.com/camaraproject/DedicatedNetworks

The API definitions can be obtained here: https://github.com/camaraproject/DedicatedNetworks/tree/main/code/API_definitions

Relation of APIs

Dedicated Network - Network Profiles API

  • GET /profiles - List of available network profiles. The response includes an id, alongside the maxNumberOfDevices, aggregatedUlThroughput, aggregatedDlThroughput, qosProfiles,…
    • Dependency: Requires qosProfiles which can be retrieved from a previous call to the QoS Profiles API.
  • GET /profiles/{profileId} - Read a dedicated network profile

Dedicated Network - Networks API

  • GET /networks - List of dedicated networks (the list can be empty)
  • POST /networks with the request body including the chose Network Profile profileId, serviceTime start and end, serviceArea is used to request the creation of a dedicated network. The response includes an id and the statusof the request. A sink for notifications can be optionally indicated.
  • GET /networks/{networkId} - get the current information about a dedicated network
  • DELETE /networks/{networkId} - delete a dedicated network

Dedicated Network - Accesses API

  • GET /accesses - List of existing device accesses to dedicated networks, optionally filtered for a given device and/or for a dedicated network (the list can be empty)
  • POST /accesses with the request body including the networkId received after invoking the Dedicated Network API (id), a device object, qosProfiles, this request will crate a device access to a dedicated network with a fiven configutation. The response includes an id.
  • GET /accesses/{accessId} - get a device access to the dedicated network and its configuration
  • DELETE /accesses/{accessId} - delete a device access to the dedicated network

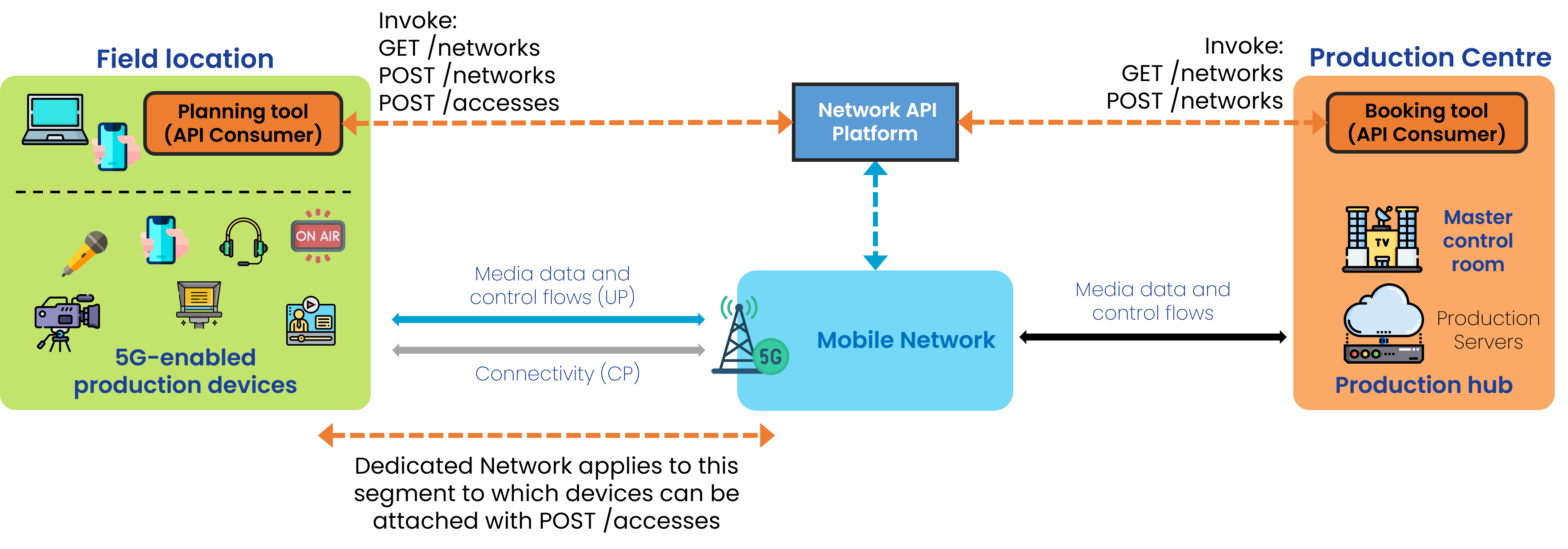

Workflow: Media application requesting a Dedicated Network

A user of a media application would like to request a Dedicated Network, with a set of capabilities and connectivity performance targets. The resut is for a particular geographical location and at a particular time window. The following steps are executed:

Step 0: Pre-conditions

  • qosProfiles have already been defined and made available by the network operator. This is related to the QoS Profiles API.
  • Network Profiles with the allowed number of devices which can be server concurrently together with the aggregated UL and DL thoughput have been defined and made available by the network operator

Step 1: Discover Network Profiles available

  • GET /profiles to obtain a list of dedicated network profiles with the corresponding id.

Step 2: Create a Dedicated Network

  • POST /networks passing the Network Profile profileId from Step 1, serviceTime start and end and serviceArea.

Step 3: Attach a Device to a Dedicated Network

  • POST /accesses passing the Network Profile networkId from Step 2, a device object, and qosProfile.

Step 4: During operation, delete a device access and attach a new device to a dedicated network or the same device to a different dedicated network

DELETE /accesses/{accessId} and POST /accesses should be used to detach or attach devices to a different dedicated network

5G-MAG’s Self-Assessment

The Profiles and Networks APIs are to be invoked before the actual usage of the network to ensure that the requested capabilities are “reserved” for the specific area and time window. During the event devices will have access to the Dedicated Network and should be allocated or de-allocated depending on the actual requirements. This API is certainly adequate for a simple use case of 1 device requesting connectivity (MoJo) or multiple devices taking part in a Media Production setup.

What is the meaning of maxNumberOfDevices? An ideal situation would be to bring different devices to an event (including for backup) which are candidates to be assigned to a dedicated network. During operation only a maximum amount of devices can concurrently connect to the network and allocated resources accoding to the network profile.

One of the most interesting features in this API is the ability to define and create the network profile and later on attach/detach a device. This adds flexibility and avoids loosing the dedicated resources when revoking a device.

Potential improvements:

  • there is a dependency with qosProfiles and Network Profiles, which need to be present before being able to invoke Dedicated Networks. This is not an issue related to this API but worth considering as it would be useful if such profiles could be created/requested by the user and accepted by the network operator, rather than requiring another process.

Dedicated Network - Network Profiles API Usage

This API allows for discovering available network profiles, which are offered by the network provider to be used in conjunction of the Dedicated Network API. Network profiles describe the capabilities and performance targets of a dedicated network.

With GET /profiles a list of available network profiles can be retrieved

[
  {
    "id": "string",
    "maxNumberOfDevices": 0,
    "aggregatedUlThroughput": {
      "value": 10,
      "unit": "bps"
    },
    "aggregatedDlThroughput": {
      "value": 10,
      "unit": "bps"
    },
    "qosProfiles": [
      "QCI_1_voice"
    ],
    "defaultQosProfile": "QCI_1_voice"
  }
]

Dedicated Network - Networks API Usage

This API allows for requesting a Dedicated Network, which provides a set of capabilities and connectivity performance targets. The Dedicated Network may be requested for a particular geographical location and at a particular time window. Depending on the requested start time for the dedicated network, the network may first enter a reserved state.

Request the creation of a dedicated network

With POST /networks, passing a profileId, serviceTime, serviceArea, among others.

{
  "profileId": "string",
  "serviceTime": {
    "start": "2025-11-05T14:14:35.390Z",
    "end": "2025-11-05T14:14:35.390Z"
  },
  "serviceArea": {},
  "sink": "https://1IG+u7oa.fNS?9-`Zg`Fi*'k",
  "sinkCredential": {}
}

Type of response: Information about the status of the request.

{
  "profileId": "string",
  "serviceTime": {
    "start": "2025-11-05T14:14:35.392Z",
    "end": "2025-11-05T14:14:35.392Z"
  },
  "serviceArea": {},
  "sink": "https://E@g-!#-fZu+}jH*Z~!HO1,!UmF'CA<19OpZ0Z))",
  "sinkCredential": {},
  "id": "3fa85f64-5717-4562-b3fc-2c963f66afa6",
  "status": "REQUESTED"
}

Dedicated Network - Accesses API Usage

This API allows for requesting network access for devices. A device is identified by the CAMARA device object, containing either an MSIDSN or a Network Access Identifier. A Device Access represents the permission for a specific device to use a Dedicated Network’s reserved connectivity resources. Only devices for which a Device Access resource has been created can use the connectivity resources allocated for that network. The usage of resources can be tailored to each device within the constraints of the applicable Network Profile.

With POST /accesses a device access can be created

{
  "networkId": "3fa85f64-5717-4562-b3fc-2c963f66afa6",
  "device": {
    "phoneNumber": "+123456789",
    "networkAccessIdentifier": "123456789@domain.com",
    "ipv4Address": {
      "publicAddress": "84.125.93.10",
      "publicPort": 59765
    },
    "ipv6Address": "2001:db8:85a3:8d3:1319:8a2e:370:7344"
  },
  "qosProfiles": [
    "string"
  ],
  "defaultQosProfile": "string"
}

Type of response: An id for the requested device access.

{
  "networkId": "3fa85f64-5717-4562-b3fc-2c963f66afa6",
  "device": {
    "phoneNumber": "+123456789",
    "networkAccessIdentifier": "123456789@domain.com",
    "ipv4Address": {
      "publicAddress": "84.125.93.10",
      "publicPort": 59765
    },
    "ipv6Address": "2001:db8:85a3:8d3:1319:8a2e:370:7344"
  },
  "qosProfiles": [
    "string"
  ],
  "defaultQosProfile": "string",
  "id": "3fa85f64-5717-4562-b3fc-2c963f66afa6"
}

Device object

This is how a device is defined:

  "device": {
    "phoneNumber": "123456789",
    "networkAccessIdentifier": "123456789@domain.com",
    "ipv4Address": {
      "publicAddress": "84.125.93.10",
      "publicPort": 59765
    },
